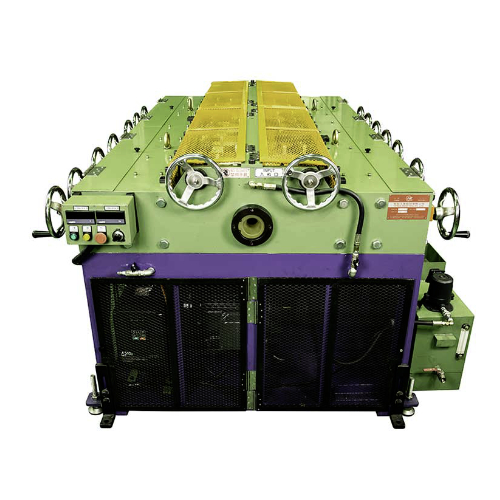

Multi-Roller Round Bar Straighten Machine-ST1014N
Model id: ST1014N
HOREN is a leading manufacturer specializing in various cold forging machinery, and we proudly present our round bar straightening machines. Our machines are designed to excel in precision straightening of a wide range of materials, including brass, aluminium, steel, special alloy tubes, pipes, and bars.
Equipped with a powerful 10HP motor and a roller configuration of Ø88 x 100L, our machines ensure efficient and accurate straightening results. The horizontal layout design with a zigzag arrangement and multi-rollers allows for effective pressing of materials, achieving optimal straightness. Each roller is equipped with distance scale gauges for easy recording of measurements.
To accommodate different material compositions, our machines feature an inverter for speed adjustment, ensuring optimal performance and quality. Additionally, they can be seamlessly integrated into automated processes by connecting to loading, feeding, and collecting machines.
Our digital control model provides operators with comprehensive records and references, facilitating precise adjustment of the straightening rollers. This user-friendly interface ensures efficient and reliable operation.
In addition to round bar straightening, our machines are versatile and can handle various working processes, including cold drawing, bending, lathing, cutting, and packaging.
Choose HOREN as your trusted partner in achieving impeccable straightening results. Experience the superior performance and precision of our round bar straightening machines for your manufacturing needs.
Features
Motor：10HP
Roller configuration：Ø88 x 100L
Applicable material：brass, aluminium, steel, special alloy tube, pipe and bar
Applicable size：Ø15~65mm
Target range：Straightness ≦0.30mm/M
Applications and features：
1. Horizontal layout design with zigzag arrangement to press the materials for straightening through multi-rollers.
2. All rollers are equipped with distance scale gauges for recording at ease.
3. Machine equipped with inverter for the speed adjustment that is required for each different composition of the material.
4. Automatic operation is available by connecting to the loading, feeding and collecting machines.
5. Digital control model provides the operator records and references that help to adjust the rollers required for straightening through an interface.
Relevant working processes：Cold drawing, bending, lathing, cutting, packaging.
A straightening machine works by leveraging hydraulic force to effectively straighten a wide range of metal materials, ranging from rods, bars, tubes, to wires. The process involves clamping the metal material securely in place between two opposing rollers. Then, they put pressure on the material until it is bent in the opposite direction of the original bend, thus straightening it. The hydraulic force can be adjusted based on the thickness and hardness of the metal material to ensure accurate and efficient straightening.
The straightening machine is equipped with advanced sensors that provide real-time feedback during the straightening process, ensuring that the metal material is properly aligned throughout the process. Additionally, the machine is designed to be highly versatile, with the ability to straighten metal materials with varying diameters, lengths, and thicknesses.
Furthermore, HOREN’s straightening machine leverages cutting-edge technology to reduce any potential damage or deformation that may occur during the straightening process. This results in a high-quality finish that meets the stringent requirements of various industries, such as construction, automotive, and aerospace.
